纵振变幅杆

Longitudinal vibration horn series

                         一体式螺旋磨削系统

                      Integrated spiral grinding system

超长纵振复合变幅杆

Compound horn series with super long longitudinal

         悬链形阶梯复合式                       指数形阶梯复合式

 Suspension Ladder Compound          Exponential Ladder Compound

超长纵振复合变幅杆仿真分析

Simulation analysis of compound horn with super long longitudinal vibration

圆锥阶梯复合杆及振幅测试图

Amplitude measurement diagram of conical step

工作频率：24.7712KHz；振幅：22um

Working frequency: 24.7712KHz; amplitude: 22um

异形端头复合变幅杆

Composite horn with different shapes

                                               三种异性端头复合装备

                                       Three kinds of heterosexual end composite equipment

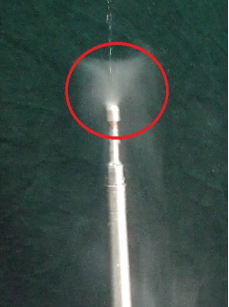

Atmospheric Vibration Atomization Experiment and Amplitude Test of End - to - ground Grinding End

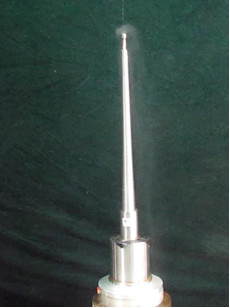

                  异形端头复合杆测试图

               Amplitude measurement diagram of horn

                                          with different shapes

异形变幅杆的工作频率：25170.4Hz，振动系统测试振幅：轴向12.4um、径向11.1um

超声换能器

Ultrasonic transducer series

                                                   超声换能器

                      Ultrasonic transducer

采用数值分析方法，研究节面位置变化对有效机电耦合系数的影响规律；采用能量理论设计方法，研究大功率换能器的稳定性与发热问题。

The influence of the position change on the effective electromechanical coupling coefficient is studied by numerical analysis method. The stability and heat generation of the high power transducer are studied by using the energy theory design method.

超声电源系列

Ultrasonic power supply series

 16-25kHz中低频超声电源

16-25kHz low frequency ultrasonic power supply

 200KHz功率超高频电源

200KHz power ultra high frequency power supply

2MHz功率兆频级超声电源

2MHz power trillion frequency ultrasonic power supply
